Heltec WiFi LoRa 32 V4 [28dBm] – Kit including Battery
Shipping Batteries – This product can only be shipped via ground and only within the US. See shipping policy for more info.
The classic WiFi LoRa 32 development board has been upgraded to the all-new V4 version. While retaining the advantages of previous editions, it features comprehensive improvements in craftsmanship and enhanced performance.
High power 28dBm (863-928MHz) version.
Kit Includes
- Heltec WiFi LoRa 32 V4 Board
- LoRa spring antenna
- Pigtail cables for power and solar
- Header pins
- 803048 1200mAh Rechargeable Battery

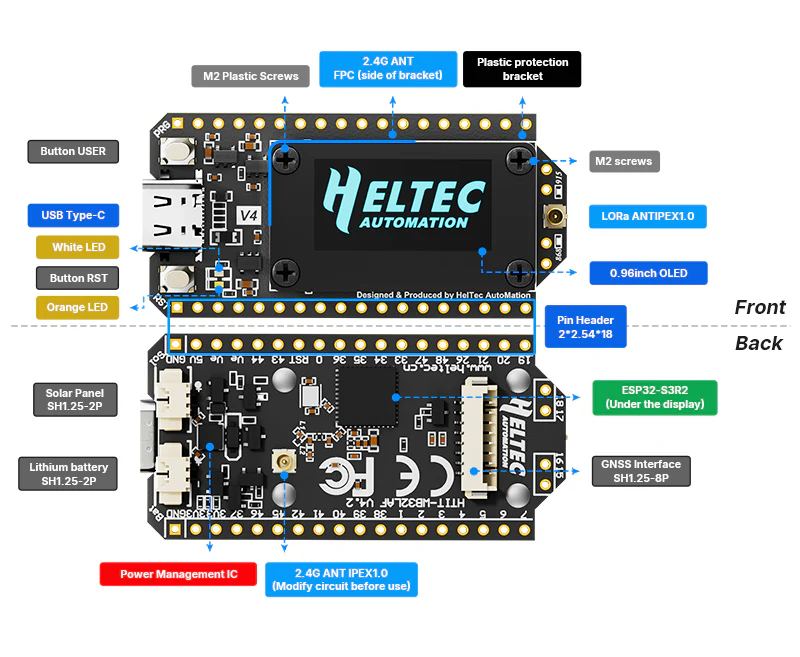

Main Features
- Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.
- 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.
- LoRa Transmit Power: High-power version 28 dBm, Low-power version 22 dBm.
- PC casing protects the screen and integrates FPC 2.4G antenna.
- Form factor and pin compatibility with WiFi LoRa 32 V3.
- Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface.
- Optimized lithium battery management.
- Support the Arduino development environment.
$26.90
Heltec WiFi LoRa 32 V4 [28dBm] – Kit including Battery—
$26.90
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Shipping Batteries – This product can only be shipped via ground and only within the US. See shipping policy for more info.
The classic WiFi LoRa 32 development board has been upgraded to the all-new V4 version. While retaining the advantages of previous editions, it features comprehensive improvements in craftsmanship and enhanced performance.
High power 28dBm (863-928MHz) version.
Kit Includes
- Heltec WiFi LoRa 32 V4 Board
- LoRa spring antenna
- Pigtail cables for power and solar
- Header pins
- 803048 1200mAh Rechargeable Battery
Main Features
- Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.
- 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.
- LoRa Transmit Power: High-power version 28 dBm, Low-power version 22 dBm.
- PC casing protects the screen and integrates FPC 2.4G antenna.
- Form factor and pin compatibility with WiFi LoRa 32 V3.
- Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface.
- Optimized lithium battery management.
- Support the Arduino development environment.
