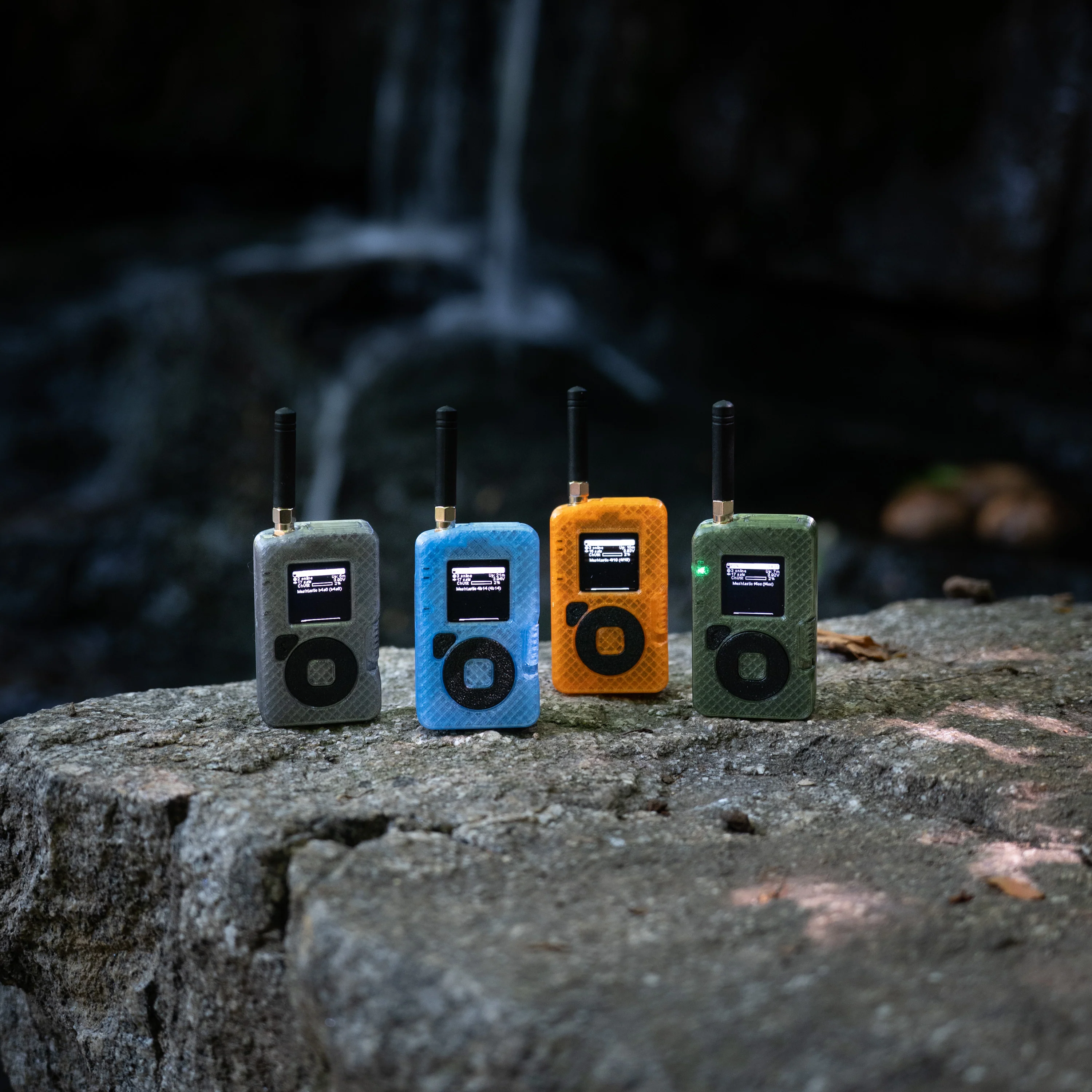

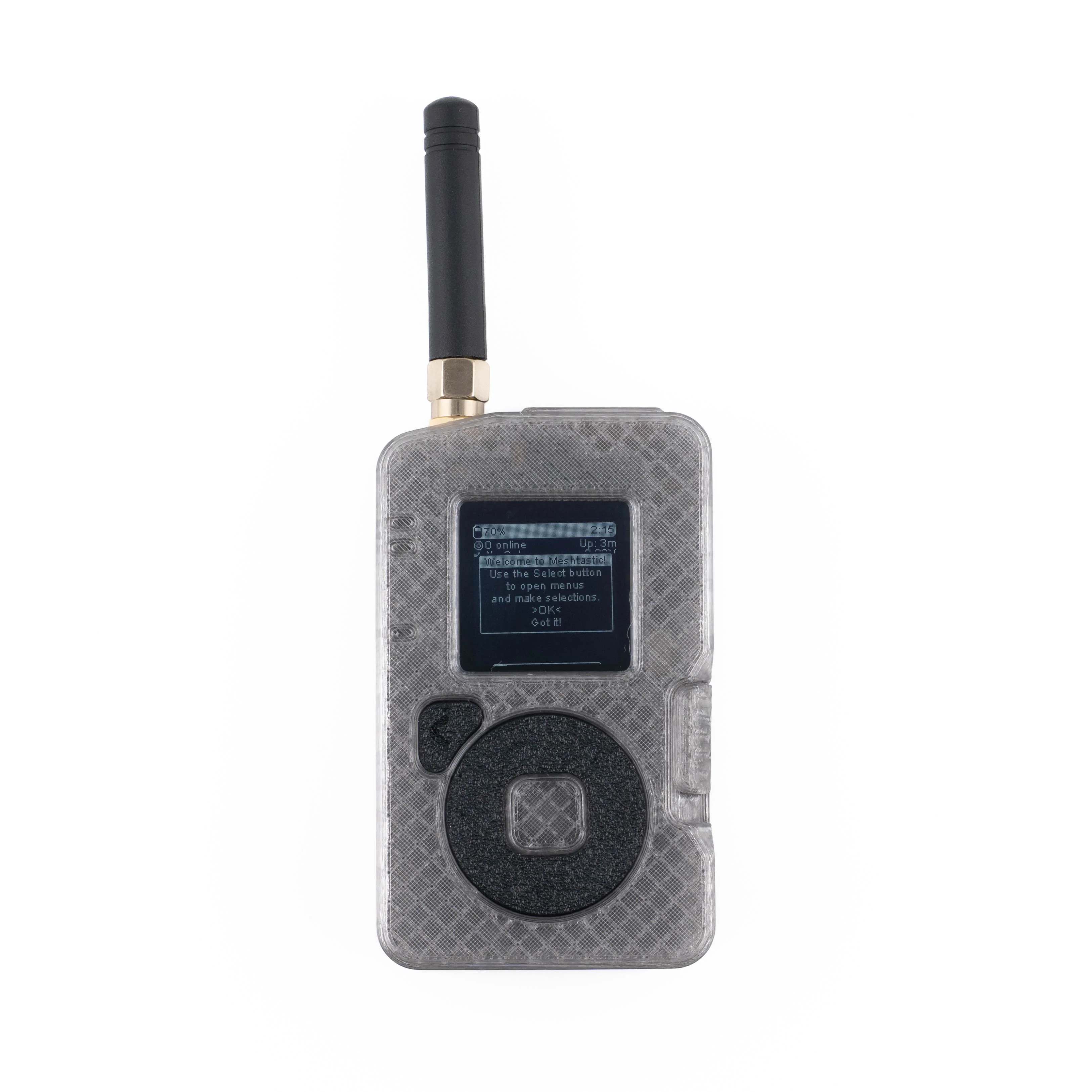

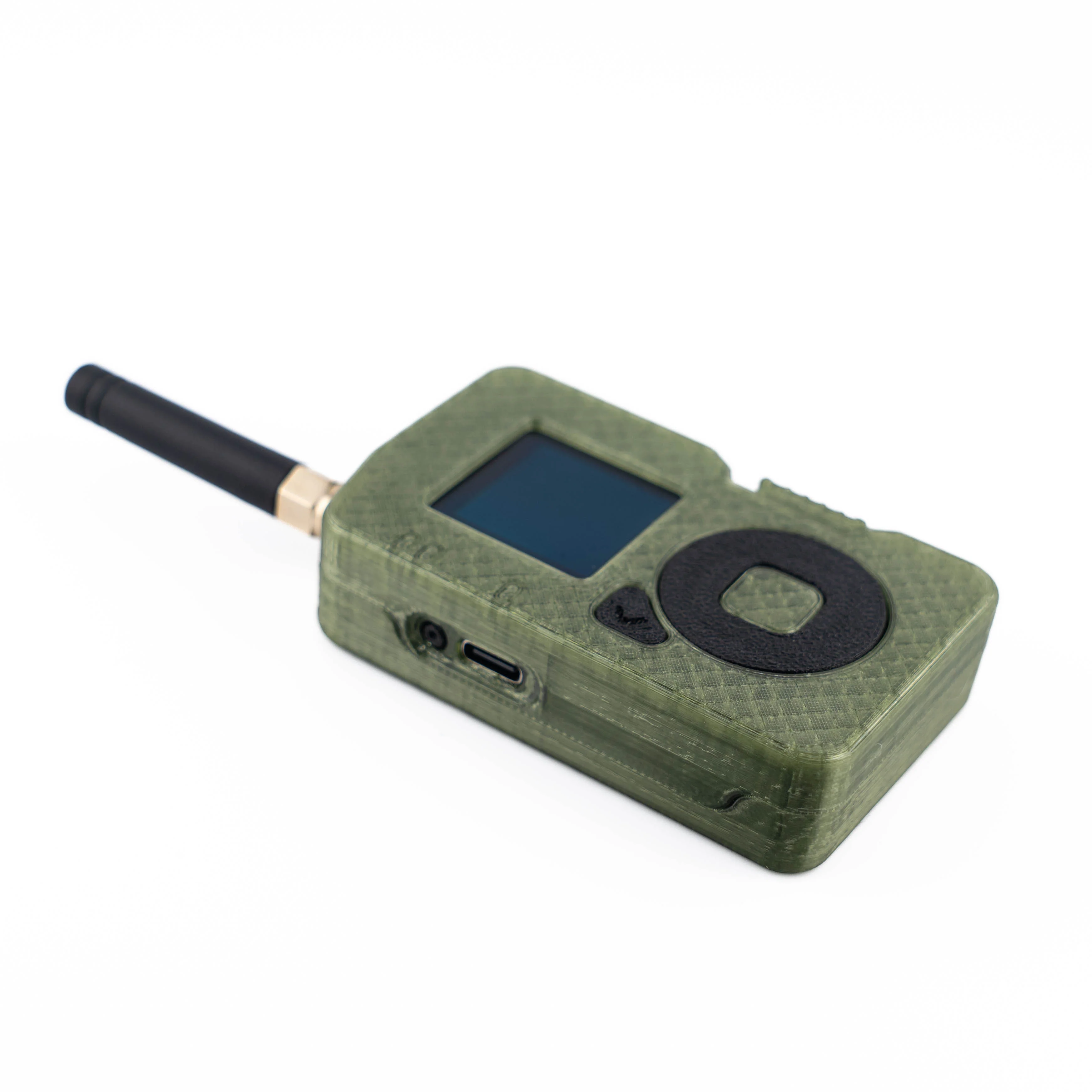

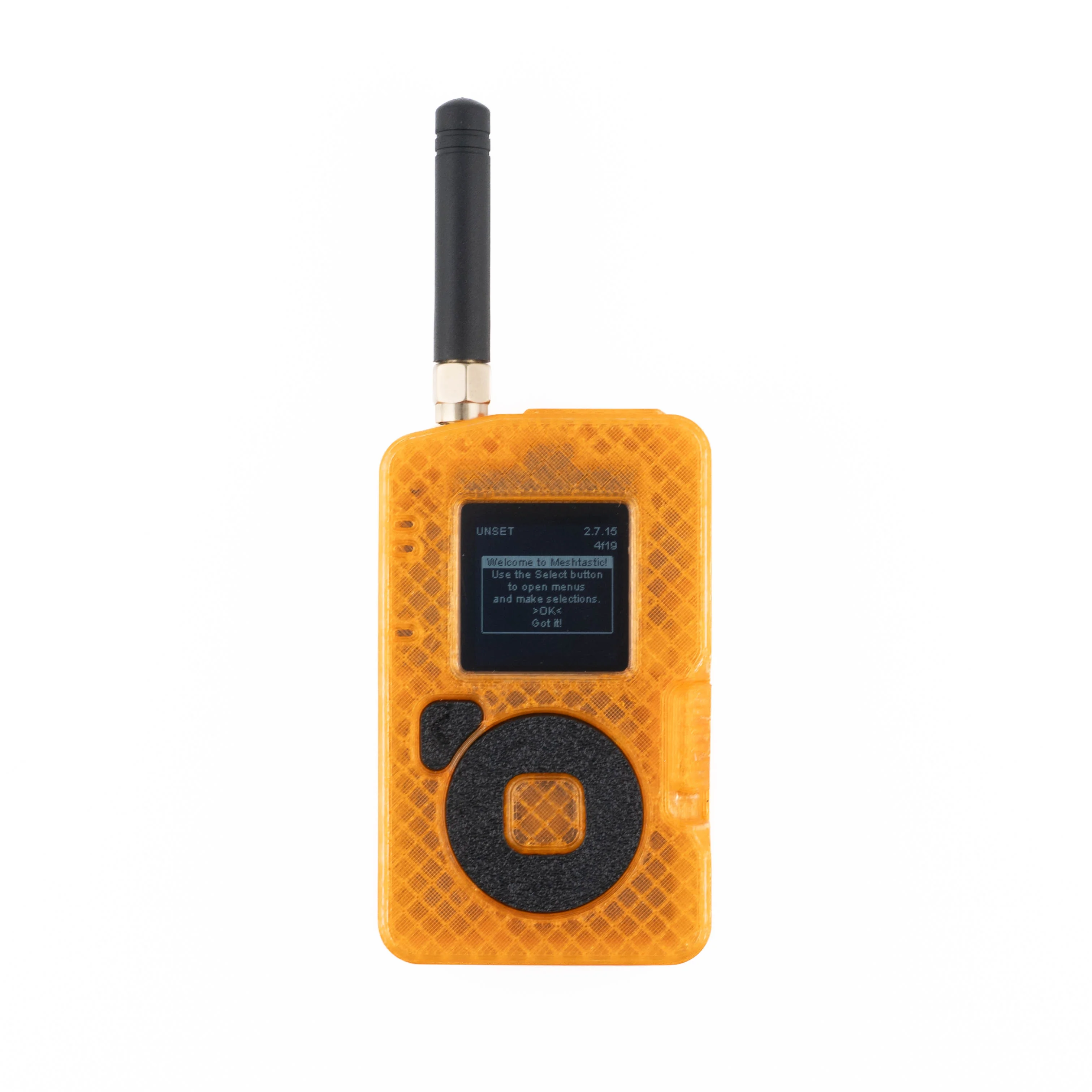

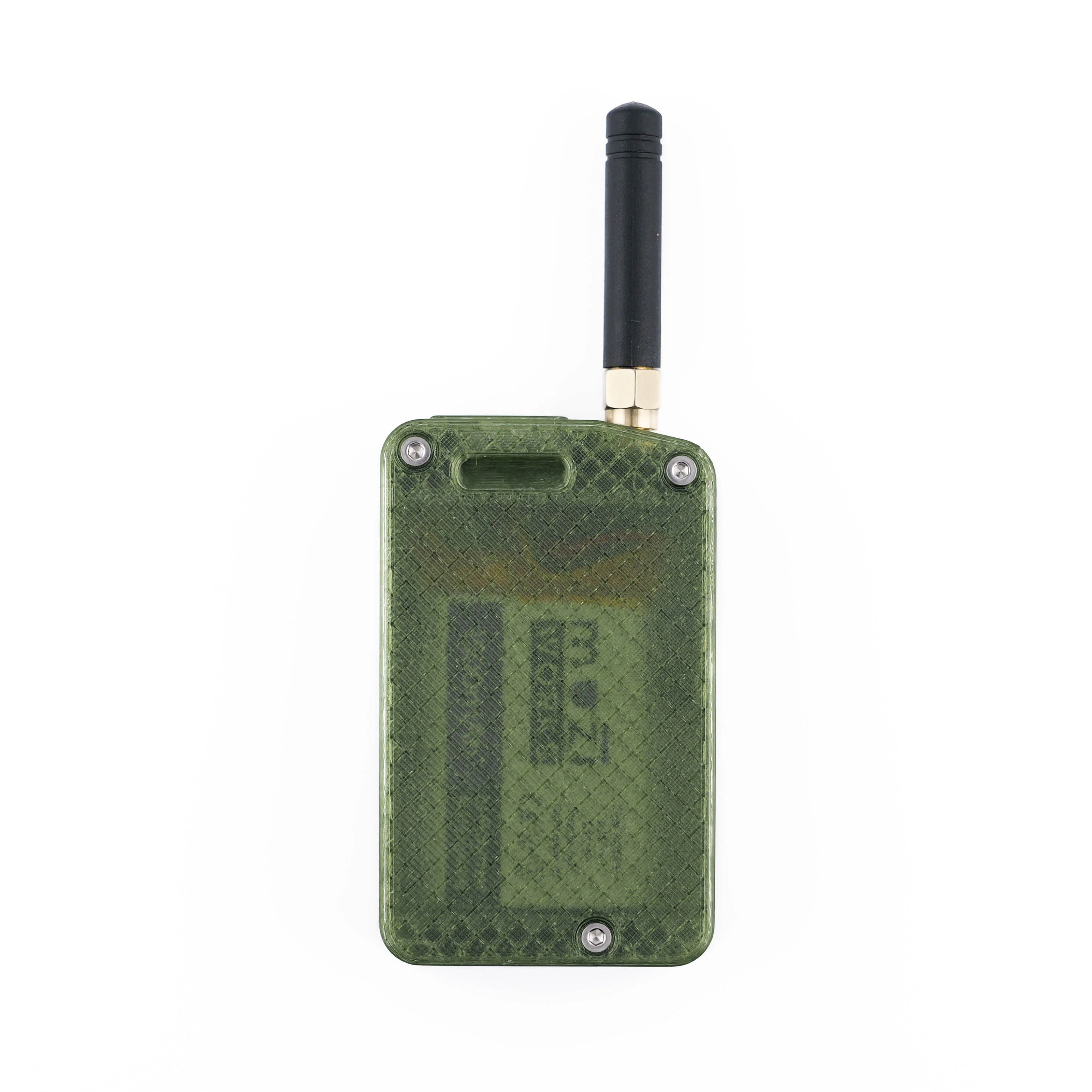

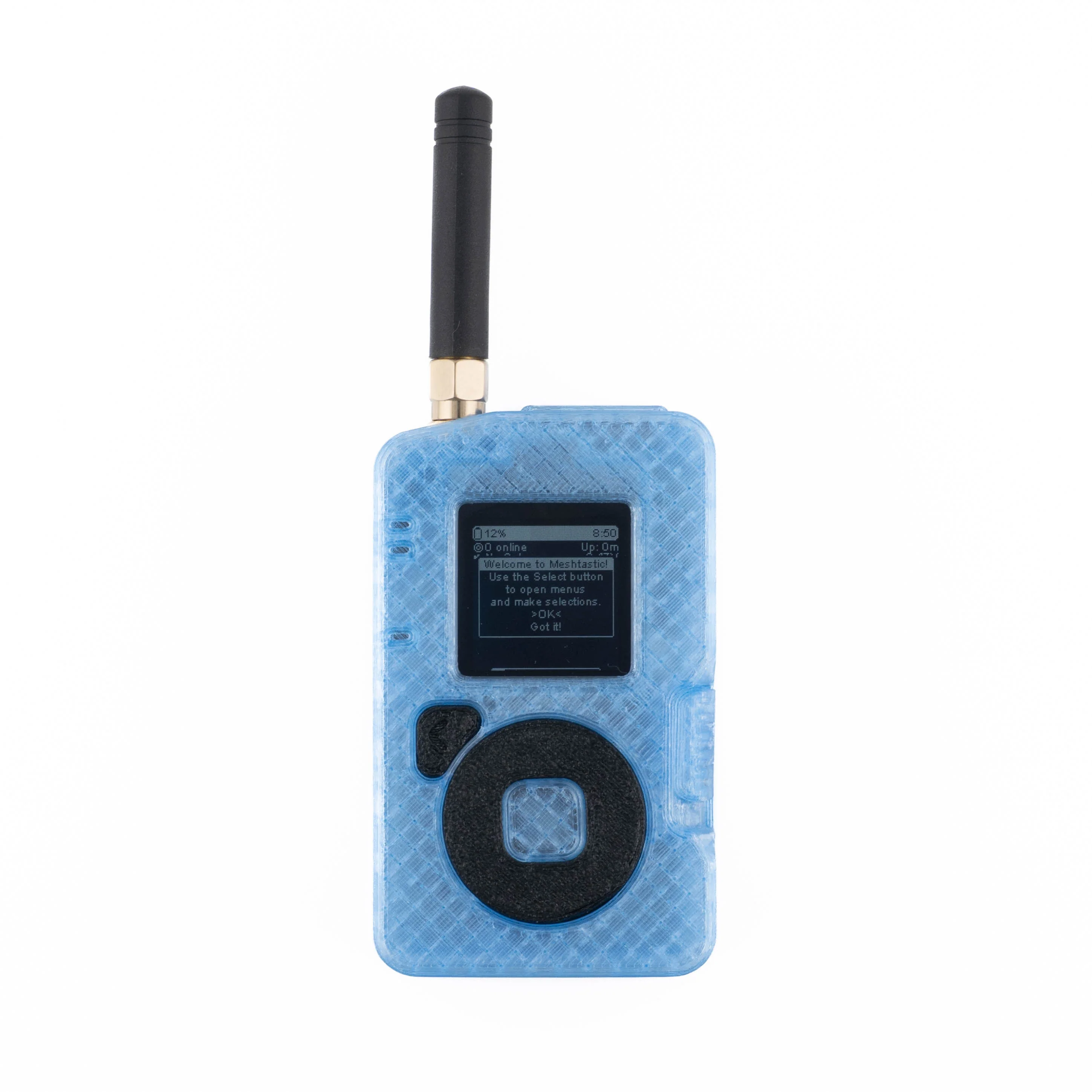

A standalone capable Meshtastic® device powered by Super IO and Base Uno. Unique 3D printed design in PETG Translucent material.

Hand assembled, ready-to-use device. Tested and flashed to the latest stable firmware.

Key Features:

• Upgraded OLED Screen with large square format
• Digital Compass
• 2 Mode Power Switch
• Navigation Pad
• Built in GPS
• Fast Charging up to 1A
• Tone Buzzer
• Expanded Flash Storage

Using the ultra power efficient nRF52840 SoC, SuperBase will last up to 2 days with GPS enabled. Exact battery life depends on firmware version and mesh traffic.

Kit Includes:

• SuperBase device with Stubby Antenna attached
• Whip Antenna (choice of 915MHz or 868MHz)
• Holster for SuperBase
• Quick Start Guide

Specifications:

• Powered by nRF52840 + SX1262
• GNSS dual navigation system GPS/BDS
• Onboard RTC for accurate timekeeping
• Built-in buzzer for message notifications
• 1500mAh protected lithium-ion polymer battery
• USB-C data + power

Dimensions:

• Device: 47.8mm x 79.5mm x 19mm [1.88in x 3.13in x 0.75in]
• Stubby Antenna Length: 4.7cm [1.9in]
• Whip Antenna Length: 17cm [6.7in]
• 80.3g [2.8oz] (with stubby antenna)

Meshtastic® is a registered trademark of Meshtastic LLC. Meshtastic software components are released under various licenses, see GitHub for details. No warranty is provided - use at your own risk.
